ESP8266 Heating Controller/Thermostat With Blynk Interface

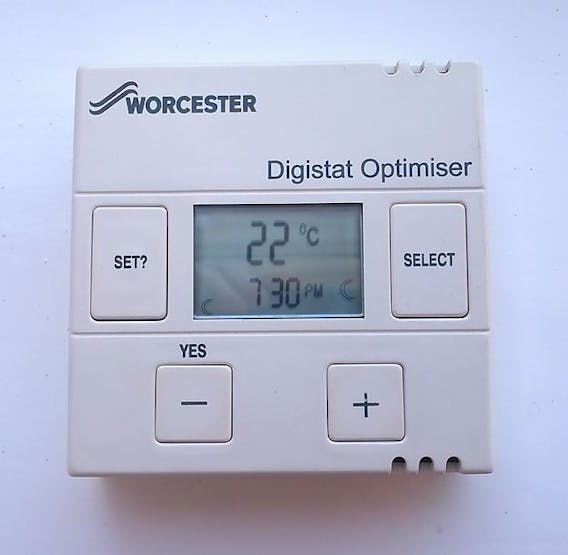

This is a unit to control a central heating system via 433MHz radio signals. Control of heating is via a Blynk app.

IntermediateWork in progress2 hours18,247
ESP8266 Heating Controller/Thermostat With Blynk Interface

Things used in this project

Hardware components

Wemos D1 Mini
Espressif Wemos D1 Mini
×1
Adafruit HTU21D Temperature & Humidity Sensor
×1
433MHz Radio Module
×1

Software apps and online services

Arduino IDE
Arduino IDE
Blynk
Blynk

Story

Read more

Schematics

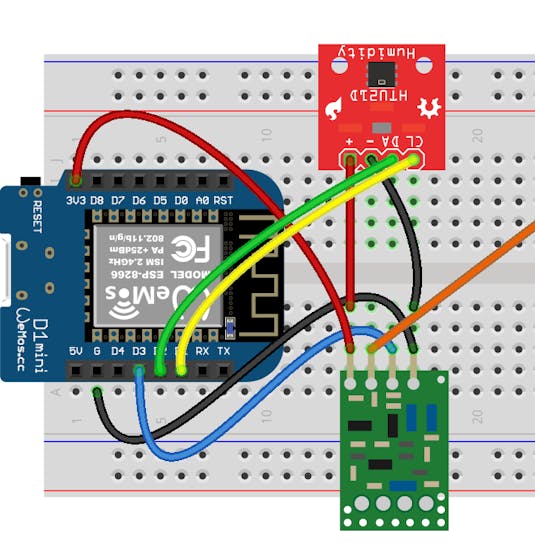

Circuit Connections for the 433MHz Heating Controller

Circuit Connections for the 433MHz Heating Controller and HTU21D sensor

Code

433MHz Heating Controller using Blynk

Arduino
433MHz Heating Controller using Blynk and an ESP8266
#define ON 1
#define OFF 0

#include <Wire.h>
#include "SparkFunHTU21D.h"
#include <ESP8266WiFi.h>
#include <BlynkSimpleEsp8266.h>
#include <EEPROM.h>

#define dataPin D3
#define BLYNK_PRINT Serial

HTU21D myHumidity;

char auth[] = "xxx";
char ssid[] = "xxx";
char pass[] = "xxx";

unsigned long lastTransmit;
unsigned long lastUpdate;
unsigned long lastTempCheck;
float temp;

int enabledState;
int requiredTemp;

void setup()
{
  EEPROM.begin(3);
  myHumidity.begin();
  //EEPROM.write(2, 0);
  //EEPROM.commit();
  pinMode(dataPin, OUTPUT);
  pinMode(LED_BUILTIN, OUTPUT);
  digitalWrite(LED_BUILTIN, LOW);
  Serial.begin(115200);
  Blynk.begin(auth, ssid, pass);
  Serial.println("Initialising....");

  lastTransmit = millis();
  lastUpdate = millis();
  lastTempCheck = millis();
  enabledState = EEPROM.read(1);
  Serial.println("EEPROM: System is  " + String(enabledState ? "ENABLED" : "DISABLED"));
  requiredTemp = EEPROM.read(2);
  Serial.println("EEPROM: Target Temperature is " + String(requiredTemp) + "°C");
}

BLYNK_CONNECTED() {
  Serial.println("CONNECTED");  Blynk.run();
  Blynk.virtualWrite(V2, requiredTemp);  Blynk.run();
  Blynk.virtualWrite(V3, requiredTemp);  Blynk.run();
  Blynk.virtualWrite(V0, enabledState);
  Blynk.setProperty(V0, "color", (enabledState ? "#00FF00" : "#FF0000"));  Blynk.run();

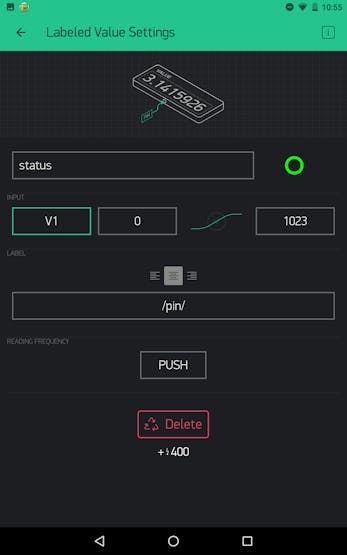

  Blynk.virtualWrite(V1, "Ready");  Blynk.run();
  Blynk.setProperty(V1, "color", "#00FF00");  Blynk.run();
  getTemps();
}

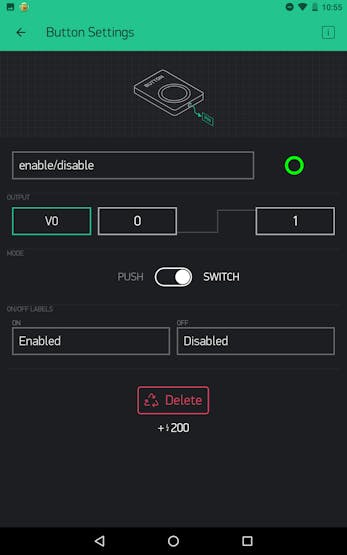

BLYNK_WRITE(V0)
{
  enabledState = !enabledState;

  EEPROM.write(1, enabledState);
  EEPROM.commit();

  Serial.println("System is " + String(enabledState ? "ENABLED" : "DISABLED"));

  Blynk.virtualWrite(V0, enabledState);
  Blynk.setProperty(V0, "color", enabledState ? "#00FF00" : "#FF0000");  Blynk.run();
}

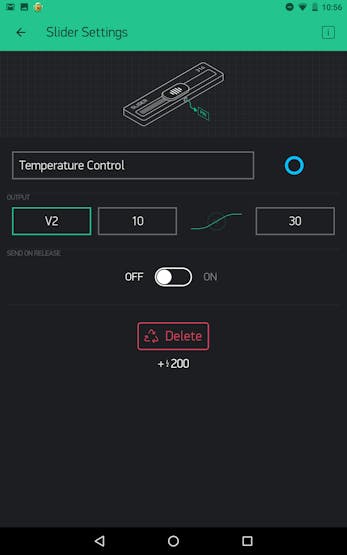

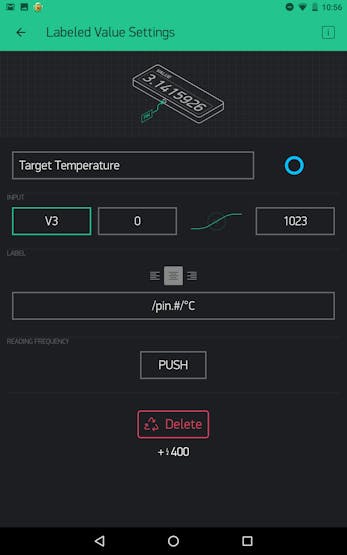

BLYNK_WRITE(V2)
{
  requiredTemp = param.asInt();  Blynk.run();
  Blynk.virtualWrite(V3, requiredTemp);  Blynk.run();
  EEPROM.write(2, requiredTemp);
  EEPROM.commit();
  Serial.println("Target Temperature is " + String(requiredTemp));
}

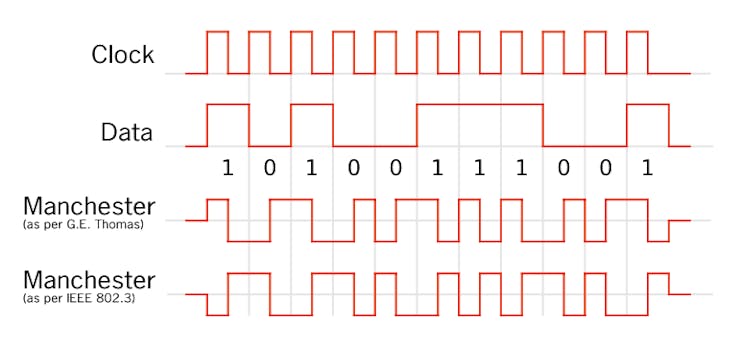

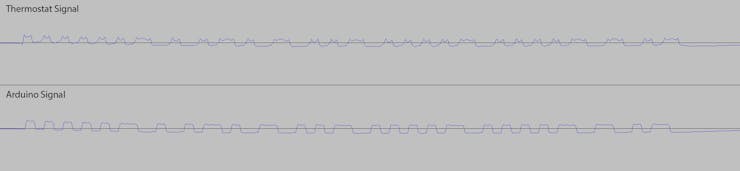

void heatingControl(boolean onOff)
{
  Serial.print(millis());
  Serial.println(" Transmitting " + String(onOff ? "ON signal" : "OFF signal"));
  int on[]   = {0, 0, 0, 0, 0, 0, 0, 1, 0, 2, 0, 0, 1, 1, 0, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 1};
  int off[]  = {0, 0, 0, 0, 0, 0, 0, 1, 0, 2, 0, 0, 1, 1, 0, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 1};

  for (int repeat = 1; repeat <= 3; repeat++)
  {
    for (int i = 0; i < sizeof( onOff ? on : off  ) / sizeof( int ); i++) {
      switch (onOff ? on[i] : off[i])
      {
        case 0:
          digitalWrite(dataPin, LOW);
          delayMicroseconds(500);
          digitalWrite(dataPin, HIGH);
          delayMicroseconds(500);
          break;
        case 1:
          digitalWrite(dataPin, HIGH);
          delayMicroseconds(500);
          digitalWrite(dataPin, LOW);
          delayMicroseconds(500);
          break;
        case 2:
          digitalWrite(dataPin, LOW);
          delayMicroseconds(500);
          break;
      }
    }
    int waitTime = millis();
    if ((millis() - waitTime) < 1000) {
      Blynk.run();
    }
  }
  Blynk.virtualWrite(V1, String(onOff ? "Heating ON" : "Heating OFF"));  Blynk.run();
  Blynk.setProperty(V1, "color", String(onOff ? "#00FF00" : "#FF0000"));  Blynk.run();
  lastTransmit = millis();
}

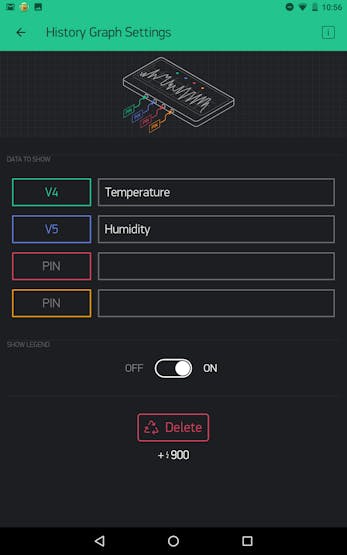

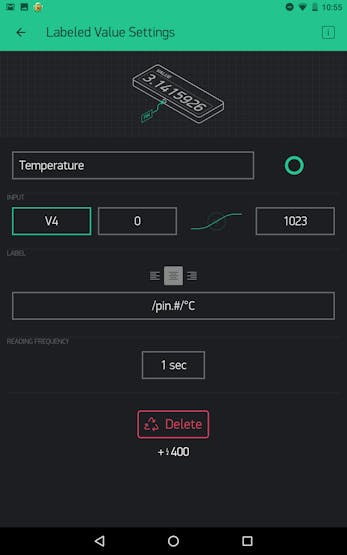

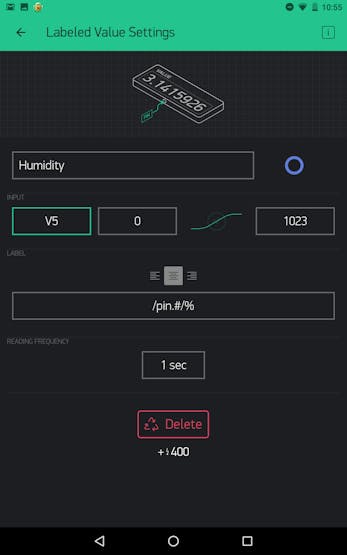

void getTemps()
{
  float humd = myHumidity.readHumidity(); Blynk.run();
  temp = myHumidity.readTemperature(); Blynk.run();

  Blynk.virtualWrite(V4, temp); Blynk.run();
  Blynk.virtualWrite(V5, humd); Blynk.run();

}

void checkTemp()
{
  if ((temp > requiredTemp) && (enabledState == ON)) heatingControl(OFF);
  if ((temp < requiredTemp) && (enabledState == ON)  heatingControl(ON);
  lastTempCheck = millis();
}

void loop()
{
  Blynk.run();

  if ((millis() -   lastTransmit) > 60000)
  {
    if ((temp < requiredTemp) && (enabledState == ON)) heatingControl(ON);
    else heatingControl(OFF);
  }

  if ((millis() -   lastUpdate) > 1000)
  {
    getTemps();
    digitalWrite(LED_BUILTIN, !digitalRead(LED_BUILTIN));
    lastUpdate = millis();
  }

  if ((millis() -   lastTempCheck) > 60000) checkTemp();
}
