The mold can be a big problem in the house. It looks bad and it can be harmful to you and your family. You can build a smart monitor that will watch the humidity in your rooms. Follow this guide where you will find out how to do it with BigClown IoT kit, NODE-Red and Blynk.
We will use the Climate monitor kit for monitoring the humidity in the room so you can make some proper actions if the humidity level is too high. You can work with the data or send it to some other devices that will do the work for you.
For this project, we will use the firmware that is already included in the BigClown Playground.
Thanks to the low-power solution this device can run up to two years on just AAA alkaline batteries.

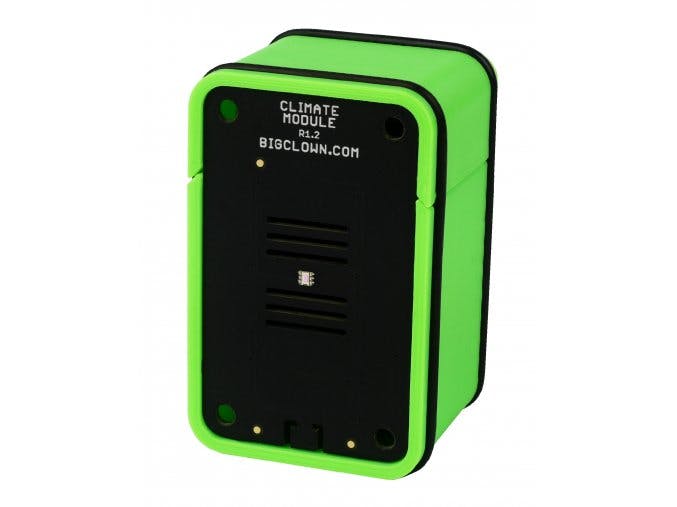

You will need a Climate monitor kit from BigClown. It contains the Core Module, Mini- Battery Module and Climate Module. Assembly is really simple, you just need to put Mini-Battery Module put Core into it and then the Climate Module.
You can watch the video below to see the full assembly guide.
Once you have the assembly done, you can move to the next step.
- Download BigClown Playground, Install the drivers, etc. After you have everything set up, open it.
- Connect your Core Module to the computer, it will detect it and you should see it in the Devices tab or in the Firmware tab
- You can now flash any firmware onto it.

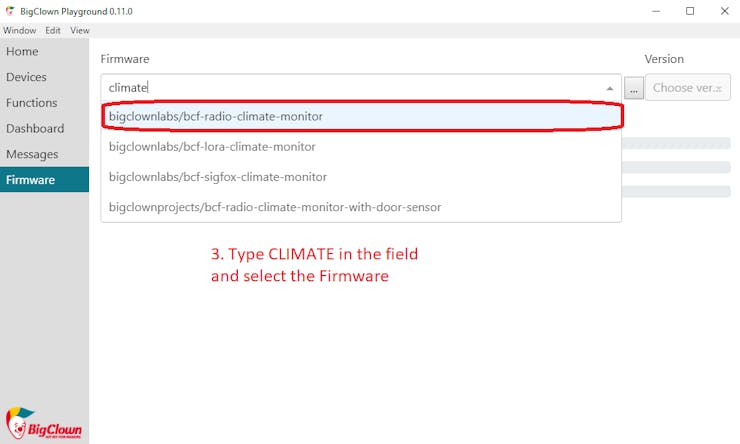

- For this project, you will need a firmware that is already included in the -Playground to be specific: bcf-radio-climate-monitor.

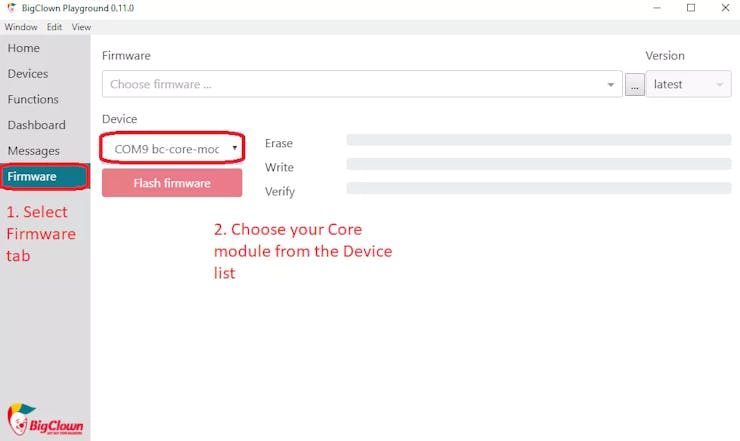

- Follow the instructions below, they will show how to flash to the Core Module.

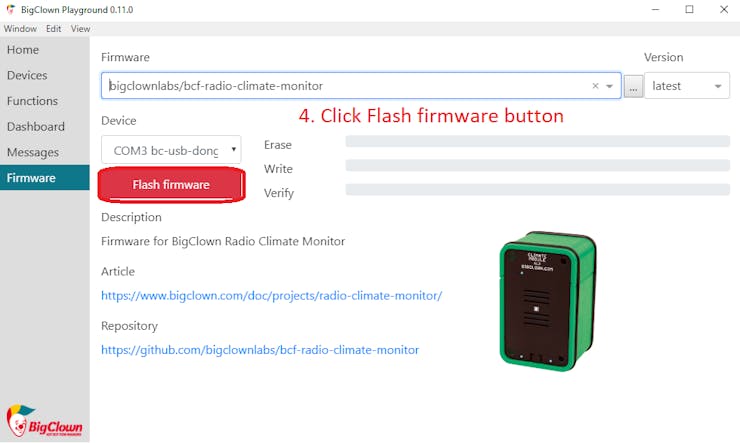

- After all this is done, you just have to wait for a moment and let the firmware to be flashed to the Core Module.
- You can get onto the next step.
You need to pair the Core module with the Radio dongle that you are using, follow the instructions below to see how it is done.
The same thing will go if you are using a Raspberry Pi as a server, just access the Raspberry through the IP address instead of the Playground

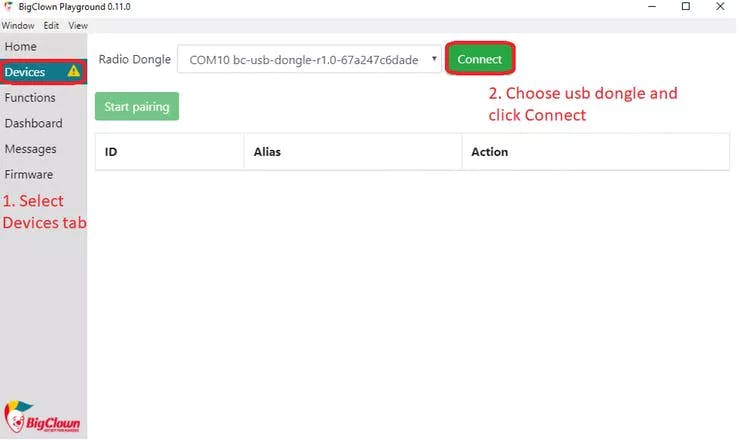

- Connect your USB Radio Dongle to your computer.
- Open BigClown Playground
- Click Start Pairing the LED on the dongle should start blinking
- Connect the device that you want to pair into your computer or insert the batteries.
- Wait for the device to appear in the table

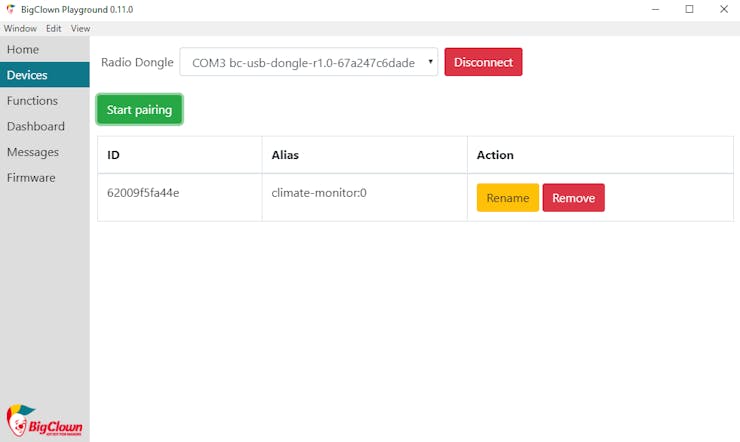

- It should add the device with the Alias: climate-monitor:0
- Click Stop Pairing
After you did all this you can unplug the device from the computer and insert the batteries, it will run on them without a problem. Next steps will be done on the computer, so you can leave the device and focus on the Playground.
Open Node-RED in the Playground or Raspberry Pi and import the flow from here. In the Menu -> Import -> Clipboard. Do not forget to hit "Deploy" in the top right corner to apply the changes.
In this flow you see just the monitor for the humidity, but the Climate Module itself has a lot more than just that. You can add more MQTT topics and measure e.g. temperature, light in the room, etc.
You can look here if you want to know more about other topics.
This project is ready for Blynk integration. How to set up Blynk with your BigClown Playground is described here. Start from step 2 and in step 4 scan the QR code that is shown below.
This app sends you the notification when the relative humidity is above 60%, you can of course change the value when the notification is sent in the NODE-Red flow. Just open the Notification function and change the 60 to something that fits you better.
You can also add some gauges in this application so you can see all the values.
You can have more of these modules in your house so you don't have to worry about the mold anymore. Radio Dongle can take a lot of the devices on its own.
Feel free to ask any questions about this project.
