Radio CO2 Monitor

Monitor your workspace or your home with this simple solution that sends all the data by radio so you can work with them.

BeginnerFull instructions provided1 hour137
Radio CO2 Monitor

Things used in this project

Hardware components

CO2 Monitor Kit
BigClown CO2 Monitor Kit
×1
Radio Dongle
BigClown Radio Dongle
×1

Software apps and online services

Playground
BigClown Playground
Blynk
Blynk
Node-RED
Node-RED

Story

Read more

Code

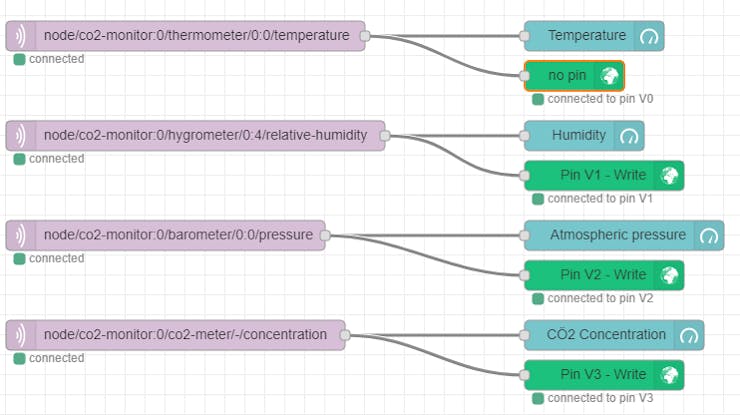

NODE-Red flow

JSON
NODE-Red flow ready to be used for CO monitor kit
[{"id":"3687fa7.f65cd06","type":"mqtt in","z":"b1cbfff0.a62c3","name":"","topic":"node/co2-monitor:0/thermometer/0:0/temperature","qos":"2","broker":"e649966c.8c2af8","x":320,"y":180,"wires":[["57b6af1f.18fd7","5564f346.978d1c"]]},{"id":"81c4e30d.4d6a","type":"mqtt in","z":"b1cbfff0.a62c3","name":"","topic":"node/co2-monitor:0/hygrometer/0:4/relative-humidity","qos":"2","broker":"e649966c.8c2af8","x":330,"y":280,"wires":[["9aa13d70.d762b","66d20d5a.c68374"]]},{"id":"522a865e.d7e338","type":"mqtt in","z":"b1cbfff0.a62c3","name":"","topic":"node/co2-monitor:0/co2-meter/-/concentration","qos":"2","broker":"e649966c.8c2af8","x":310,"y":480,"wires":[["1a570a00.475226","266405ad.25168a"]]},{"id":"a2b3a41a.136c88","type":"mqtt in","z":"b1cbfff0.a62c3","name":"","topic":"node/co2-monitor:0/barometer/0:0/pressure","qos":"2","broker":"e649966c.8c2af8","x":300,"y":380,"wires":[["6762302a.aebbd","279186cd.34812a"]]},{"id":"57b6af1f.18fd7","type":"ui_gauge","z":"b1cbfff0.a62c3","name":"","group":"57ff470b.93fdf8","order":0,"width":0,"height":0,"gtype":"gage","title":"Temperature","label":"°C","format":"{{value}}","min":0,"max":"40","colors":["#00b500","#e6e600","#ca3838"],"seg1":"","seg2":"","x":730,"y":180,"wires":[]},{"id":"9aa13d70.d762b","type":"ui_gauge","z":"b1cbfff0.a62c3","name":"","group":"57ff470b.93fdf8","order":0,"width":0,"height":0,"gtype":"gage","title":"Humidity","label":"%","format":"{{value}}","min":0,"max":"100","colors":["#97faff","#00b8c1","#005bca"],"seg1":"","seg2":"","x":720,"y":280,"wires":[]},{"id":"1a570a00.475226","type":"ui_gauge","z":"b1cbfff0.a62c3","name":"","group":"57ff470b.93fdf8","order":0,"width":0,"height":0,"gtype":"gage","title":"CÖ2 Concentration","label":"ppm","format":"{{value}}","min":0,"max":"10000","colors":["#ffffff","#c0c0c0","#220909"],"seg1":"","seg2":"","x":750,"y":480,"wires":[]},{"id":"6762302a.aebbd","type":"ui_gauge","z":"b1cbfff0.a62c3","name":"","group":"57ff470b.93fdf8","order":0,"width":0,"height":0,"gtype":"gage","title":"Atmospheric pressure","label":"kPa","format":"{{value}}","min":"20","max":"110","colors":["#00b500","#e6e600","#ca3838"],"seg1":"","seg2":"","x":760,"y":380,"wires":[]},{"id":"5564f346.978d1c","type":"blynk-ws-out-write","z":"b1cbfff0.a62c3","name":"","pin":0,"pinmode":0,"client":"69359c27.0b0d54","x":710,"y":220,"wires":[]},{"id":"66d20d5a.c68374","type":"blynk-ws-out-write","z":"b1cbfff0.a62c3","name":"","pin":"1","pinmode":0,"client":"69359c27.0b0d54","x":740,"y":320,"wires":[]},{"id":"266405ad.25168a","type":"blynk-ws-out-write","z":"b1cbfff0.a62c3","name":"","pin":"3","pinmode":0,"client":"69359c27.0b0d54","x":740,"y":520,"wires":[]},{"id":"279186cd.34812a","type":"blynk-ws-out-write","z":"b1cbfff0.a62c3","name":"","pin":"2","pinmode":0,"client":"69359c27.0b0d54","x":740,"y":420,"wires":[]},{"id":"e649966c.8c2af8","type":"mqtt-broker","z":"","name":"","broker":"127.0.0.1","port":"1883","clientid":"","usetls":false,"compatmode":true,"keepalive":"60","cleansession":true,"birthTopic":"","birthQos":"0","birthPayload":"","closeTopic":"","closeQos":"0","closePayload":"","willTopic":"","willQos":"0","willPayload":""},{"id":"57ff470b.93fdf8","type":"ui_group","z":"","name":"Default","tab":"11207769.c31889","disp":true,"width":"6","collapse":false},{"id":"69359c27.0b0d54","type":"blynk-ws-client","z":"","name":"CO2 Monitor","path":"ws://blynk-cloud.com/websockets","key":"","dbg_all":false,"dbg_read":false,"dbg_write":false,"dbg_notify":false,"dbg_mail":false,"dbg_prop":false,"dbg_sync":false,"dbg_bridge":false,"dbg_low":false,"dbg_pins":"","multi_cmd":false,"proxy_type":"no","proxy_url":""},{"id":"11207769.c31889","type":"ui_tab","z":"","name":"Home","icon":"dashboard"}]
