MovingLight - Blynk + NeoPixel + Stepper Motor + Feather

MovingLight is a moveable NeoPixel LED light with two stepper motors and is controlled via Bluetooth and Blynk app.

IntermediateFull instructions provided60
MovingLight - Blynk + NeoPixel + Stepper Motor + Feather

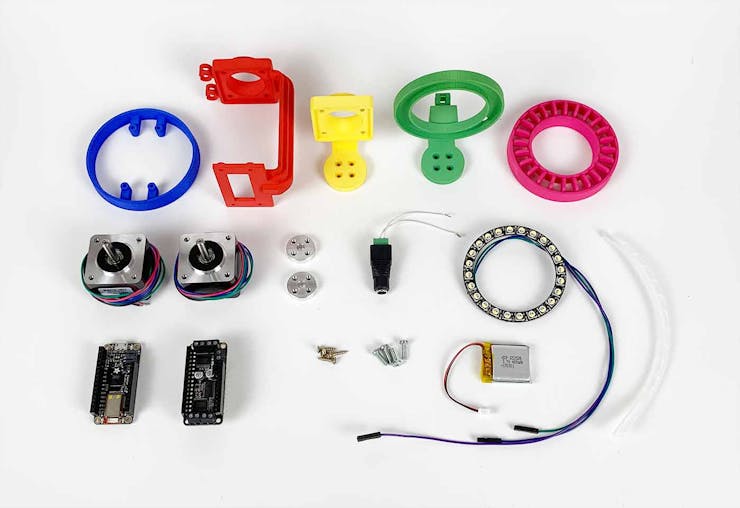

Things used in this project

Hardware components

NeoPixel Ring: WS2812 5050 RGB LED
Adafruit NeoPixel Ring: WS2812 5050 RGB LED
×1
Adafruit Feather 32u4 Bluefruit LE
×1
Adafruit DC Motor + Stepper FeatherWing
×1
Pololu Stepper Motor
×1
shaft coupler
×1
cable coiled tube
×1

Software apps and online services

Blynk
Blynk

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)

Story

Read more

Custom parts and enclosures

Part 02 - Robotic Arm 01

Part 03 - Robotic Arm 02

Part 04 - Robotic Arm 03

Part 01 - Base

Part 05 - Iris

Schematics

Schematics

To connect your motor to the feather wing, please check the order of the wires.
Connect feather Pin 11 with the input of the Neopixel Ring.
190112 movinglight 01 steckplatine a6osf4iqmf

Code

MovingLight_V0.1.ino

Arduino
/*************************************************************
* Project: MovingLight V1.0
* MovingLight is a moveable Neopixel-LED light with two stepper
* motors and is controlled via bluetooth and Blynk app.
* Author: Andre Nakonz
* Date: 2019/01/20
*
* For this example you need to install some libraries:
*
* Adafruit nRF51 BLE Library
* Adafruit AccelStepper Library
* Adafruit Motor Shield V2 Library
* Adafruit Neopixel Library
* Blynk Library
*
* CREDITS
* Code snippets are from Adafruit.
*
**************************************************************/

// BLYNK /////////////////////////////////////////

#define BLYNK_USE_DIRECT_CONNECT
#define BLYNK_PRINT Serial
#include <BlynkSimpleSerialBLE.h>
// You should get Auth Token in the Blynk App.
// Go to the Project Settings (nut icon).
char auth[] = "YOUR_TOKEN";

// STEPPERMOTORS ///////////////////////////////////

#include <Wire.h>
#include <AccelStepper.h>
#include <Adafruit_MotorShield.h>// Create the motor shield object with the default I2C address
Adafruit_MotorShield AFMS = Adafruit_MotorShield();
// Connect a stepper motor with 200 steps per revolution (1.8 degree)
// to motor port #2 (M3 and M4)
Adafruit_StepperMotor *myMotor1 = AFMS.getStepper(200, 1);
Adafruit_StepperMotor *myMotor2 = AFMS.getStepper(200, 2);
// you can change these to DOUBLE or INTERLEAVE or MICROSTEP!
// wrappers for the first motor!
void forwardstep1() {
  myMotor1->onestep(FORWARD, MICROSTEP);
}
void backwardstep1() {
  myMotor1->onestep(BACKWARD, MICROSTEP);
}
// wrappers for the second motor!
void forwardstep2() {
  myMotor2->onestep(FORWARD, MICROSTEP);
}
void backwardstep2() {
  myMotor2->onestep(BACKWARD, MICROSTEP);
}
// Now we'll wrap the 3 steppers in an AccelStepper object
AccelStepper stepper1(forwardstep1, backwardstep1);
AccelStepper stepper2(forwardstep2, backwardstep2);


// BLE /////////////////////////////////////////

#include <Adafruit_BLE.h>
#include <Adafruit_BluefruitLE_SPI.h>
#include <SPI.h>
// SHARED SPI SETTINGS (see adafruit webpages for details)
#define BLUEFRUIT_SPI_CS               8
#define BLUEFRUIT_SPI_IRQ              7
#define BLUEFRUIT_SPI_RST              -1    // Optional but recommended, set to -1 if unused
#define BLUEFRUIT_VERBOSE_MODE         true
// Create ble instance, see pinouts above
Adafruit_BluefruitLE_SPI ble(BLUEFRUIT_SPI_CS, BLUEFRUIT_SPI_IRQ, BLUEFRUIT_SPI_RST);


// NEOPIXEL /////////////////////////////////

#include <Adafruit_NeoPixel.h>
#define PIXEL_COUNT 24 // Neopixel Ring for Photon has 24 LEDs
#define PIXEL_PIN 11 // Neopixel Ring uses D6
#define PIXEL_TYPE NEO_RGBW + NEO_KHZ800
//Adafruit_NeoPixel strip = Adafruit_NeoPixel(PIXEL_COUNT, PIXEL_PIN, SK6812);
Adafruit_NeoPixel strip(PIXEL_COUNT, PIXEL_PIN, PIXEL_TYPE);
int colorPicker = 0;
int colorR = 0;
int colorG = 0;
int colorB = 0;


// Start with mode = 0
int mode = 0;


void setup() {
  // Stepper Motors. See Adafruit AccelStepper Libraray for details.
  AFMS.begin();
  stepper1.setMaxSpeed(100.0);
  stepper1.setAcceleration(100.0);
  stepper1.moveTo(1000);

  stepper2.setMaxSpeed(100.0);
  stepper2.setAcceleration(100.0);
  stepper2.moveTo(1000);

  // Bluetooth
  ble.begin(BLUEFRUIT_VERBOSE_MODE);
  ble.factoryReset(); // Optional
  ble.setMode(BLUEFRUIT_MODE_DATA);

  // Blynk
  Blynk.begin(auth, ble);

  // Neopixel
  strip.begin();
  strip.setBrightness(200); // 40/255 brightness (about 15%)
}

  BLYNK_WRITE(V0){
  mode = 0; // Stepper Stop
}

  BLYNK_WRITE(V1){
  mode = 1; // Stepper vertical and horizontal
}

  BLYNK_WRITE(V2){
  mode = 2; // Stepper vertical
}

  BLYNK_WRITE(V3){
  mode = 3; // Stepper horizontal
}

  BLYNK_WRITE(V10){
  mode = 10; // // Lights OFF
}

  BLYNK_WRITE(V11){
  mode = 11; // // Lights ON
}

  BLYNK_WRITE(V20){
  colorR = param.asInt(); //Color Red
}

  BLYNK_WRITE(V21){
  colorG = param.asInt(); //Color Green
}

  BLYNK_WRITE(V22){
  colorB = param.asInt(); //Color Blue
}

void loop() {


Blynk.run();

if(mode == 0){ //StepperStop
    stepper1.speed();
    stepper2.speed();

}

else if(mode == 1){ // MovingModeOne
    // Change direction at the limits
    if (stepper1.distanceToGo() == 0)
    stepper1.moveTo(-stepper1.currentPosition());
    if (stepper2.distanceToGo() == 0)
    stepper2.moveTo(-stepper2.currentPosition());
    stepper1.run();
    stepper2.run();
}

else if(mode == 2){ // MovingModeOne
    if (stepper2.distanceToGo() == 0)
    stepper2.moveTo(-stepper2.currentPosition());
    stepper2.run();
}

else if(mode == 3){ // MovingModeOne
    // Change direction at the limits
    if (stepper1.distanceToGo() == 0)
    stepper1.moveTo(-stepper1.currentPosition());
    stepper1.run();
}

else if(mode == 10){ //LIGHT OFF
       for (int i = 0; i < strip.numPixels(); i++) {
       strip.setPixelColor(i, 0, 0, 0);
     }
      strip.show();
}

else if(mode == 11){ // Rainbow Solid
    for (int i = 0; i < strip.numPixels(); i++) {
       strip.setPixelColor(i, colorG, colorR, colorB);
     }
     strip.show();
}
}
