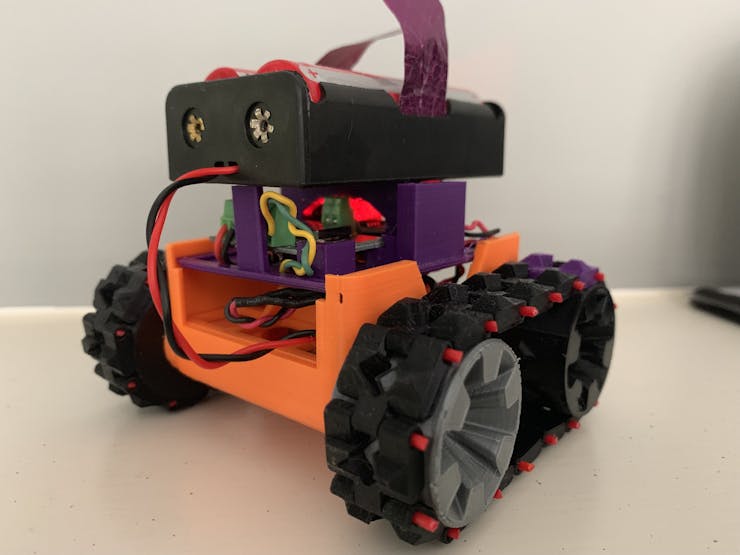

SMARS Bot with ESP8266-WEMOS D1 Mini and Blynk Control

This project will show you how to adapt a SMARS bot for control with an iPhone accelerometers, Blynk, Wemos D1 Mini, over WiFi.

IntermediateFull instructions provided20 hours267
SMARS Bot with ESP8266-WEMOS D1 Mini and Blynk Control

Things used in this project

Hardware components

Wemos D1 Mini
Espressif Wemos D1 Mini
×1
HiLetgo L9110S H-bridge Dual DC Stepper Motor Driver Controller Board for Arduino
×1
3A UBEC Input 9-26V 3-6S Lipo battery Output voltage 5.25V +/-0.5V
×1
DBParts 20pcs 2-Pin (2 Pole) Plug-in Screw Terminal Block Connector 2.54mm Pitch Panel PCB Mount DIY
×1
EBL 3.7v Lithium Ion battery
×2

Software apps and online services

Blynk
Blynk

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)
3D Printer (generic)
3D Printer (generic)

Story

Read more

Custom parts and enclosures

SMARS - WEMOS Mounting Plate

Schematics

SMARS - WEMOS Wiring Diagram

Code

SMARS - WEMOS

C/C++
/*
SMARS Tracked Vehicle Controller via BLYNK and Wemos D1 mini WiFi
On your phone in the Blynk app you need the following 4 widgets:
-SliderL on Virtual Pin: V0, Labelled Left -1023 to +1023
-SliderL on Virtual Pin V1, Labelled Right -1023 to +1023
-Switch on Virtual Pin V2, Labelled Run/Stop
-Accelerometer on Virtual Pin V3
-Switch on Virtual Pin V4 Labelled Run/Stop
The SMARS will operate in two modes with this setup
-Slider switches to increase or decrease and reverse track speed independent of each other to skid steer
and,

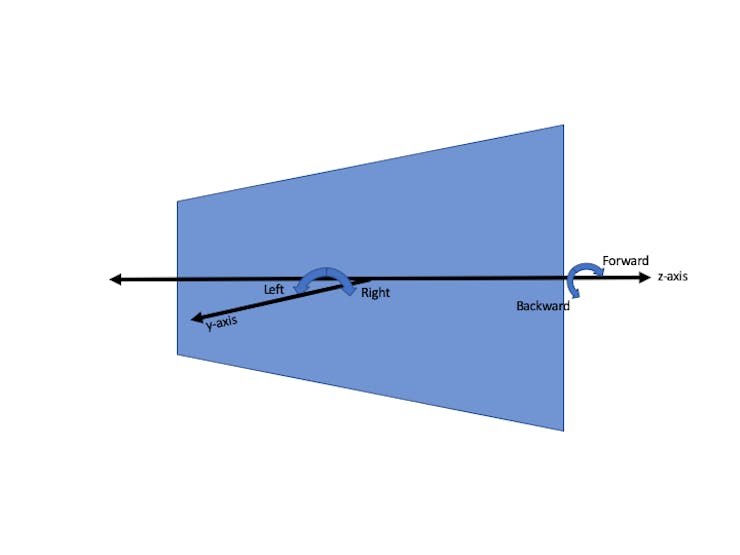

-Making use of the iPhone y and z axis accelerometers such that changing the orientation of the iphone
z-axis will increase or decrease and reverse track speed and y-axis will turn the bot left or right by
reducing the track speed relative to the amount of y-axis change.

Uses L9110 2-CHANNEL MOTOR DRIVER. Spec sheet-https://tinyurl.com/y88pgaka


// **********Use this code at your own risk!**********
*/
//**********Libraries**********

//#define BLYNK_USE_DIRECT_CONNECT
#define BLYNK_PRINT Serial

#include <ESP8266WiFi.h>
#include <BlynkSimpleEsp8266.h>

//**********Blynk***********

// You should get Auth Token in the Blynk App.
// Go to the Project Settings (nut icon).

char auth[] = "XXXXXXXXXXXXXXXXX"; //Enter your Blynk Authentication Token

// Your WiFi credentials.
// Set password to "" for open networks.
char ssid[] = "XXXXXXXXXX"; //Enter your iphone wifi hotspot name
char pass[] = "XXXXXXXXXX"; //Enter your wifi hotspot password

//**********Blynk***********

//********************MOTORS***************************
#define motorA1A D1 //A1A Front Motor +
#define motorA1B D2 //AIB Front Motor -
#define motorB1A D5 //B1A Rear Motor +
#define motorB1B D6 //B1B Rear Motor -
//********************MOTORS***************************

//*************Slider Control Mode Variables****************
int leftMotorSpeed; //PWM value for motor speed
int rightMotorSpeed; //PWM value for motor speed
int stopGo = 0; //Blynk Switch for slider controls
//*************Slider Control Mode Variables****************

//*************Accelerometer Control Mode Variables*********
float y_Steer;  //Y-Axis accelerometer value
float z_Speed;  //Z-Axis accelerometer value
float motorSpeed; // PWM value from z_Speed for drive track
float motorSpeedADJ; //y-Steer adjusted PWM for skid turn track
int accel_Ready = 0; // Blynk V4 Switch On-Off Accelerometer Mode
//*************Accelerometer Control Mode Variables*********

//*****************************************************************************
//********************************VOID SETUP***********************************
//*****************************************************************************
void setup() {

Serial.begin(115200);

pinMode(motorA1A,OUTPUT); //Set Wemos D1 PIN to OUTPUT
pinMode(motorA1B,OUTPUT); //Set Wemos D2 PIN to OUTPUT
pinMode(motorB1A,OUTPUT); //Set Wemos D5 PIN to OUTPUT
pinMode(motorB1B,OUTPUT); //Set Wemos D6 PIN to OUTPUT

Blynk.begin(auth, ssid, pass); //START BLYNK
}
//**********************************************************************
//*************************END VOID SETUP*******************************
//**********************************************************************

//**********************************************************************
//***************************VOID LOOP**********************************
//**********************************************************************

  void loop(){

  Blynk.run();

}

//**************************************************************************
//*************************END VOID LOOP************************************
//**************************************************************************


//**********Read BLYNK LEFT Motor Slider - Slider Control Mode **********
BLYNK_WRITE(V0) {
  leftMotorSpeed = param.asInt();
  if (stopGo != 0 && accel_Ready != 1) {
  if (leftMotorSpeed > 0) {
    analogWrite(motorA1A, 0); //V0 is positive move left track forward
    analogWrite (motorA1B, leftMotorSpeed);
  } else {
    leftMotorSpeed = -leftMotorSpeed;
    analogWrite (motorA1A, leftMotorSpeed); //V0 is negative move left track backward
    analogWrite (motorA1B, 0); //Turning Side slower than opposing side
  }
 }
}
//**********Read BLYNK LEFT Motor Slider - Slider Control Mode **********


//**********Read BLYNK RIGHT Motor Slider - Slider Control Mode **********
BLYNK_WRITE(V1) {
  rightMotorSpeed = param.asInt();
  if (stopGo != 0 && accel_Ready != 1) {
  if (rightMotorSpeed > 0) {
    analogWrite (motorB1A, 0); //V1 is positive move right track forward
    analogWrite (motorB1B, rightMotorSpeed);
  } else {
    rightMotorSpeed = -rightMotorSpeed;
    analogWrite (motorB1A, rightMotorSpeed); //V1 is negative move right track backward
    analogWrite (motorB1B, 0);
  }
 }
}
//**********Read BLYNK RIGHT Motor Slider - Slider Control Mode **********


//**********Read STOP / RUN Switch - Slider Control Mode **********
BLYNK_WRITE(V2) {
  stopGo = param.asInt();
  if (stopGo == 0)
      Blynk.virtualWrite (V0, 0); //Set the Blynk slide switches to zero
      Blynk.virtualWrite (V1, 0); //Set the Blynk slide switches to zero
      analogWrite (motorA1A, 0);
      analogWrite (motorA1B, 0);
      analogWrite (motorB1A, 0);
      analogWrite (motorB1B, 0);
    }
//**********Read STOP / RUN Switch - Slider Control Mode **********


//**************** Accelerometer - Accelerometer Control Mode****************

BLYNK_WRITE(V3) {

  y_Steer = param [1].asFloat();  //Accelerometer y-axis for left(-)/right(+) turns
  z_Speed = param [2].asFloat();  //Accelerometer z-axis for forward(-)/reverse(+)

  if (accel_Ready == 0 && stopGo == 0) {    //if switch is off turn off motors
      analogWrite(motorA1A, 0);
      analogWrite(motorA1B, 0);
      analogWrite(motorB1A, 0);
      analogWrite(motorB1B, 0);
  }

  if (stopGo != 1 && accel_Ready != 0 ) {  //Skip this if stopGo button is ON.

  Serial.print ("  y_Steer: ");
  Serial.print (y_Steer);
  Serial.print ("  z_Speed: ");
  Serial.println (z_Speed);

  //if (accel_Ready ==1){  //ENGAGE Accelerometer Function

  //STOP

  if ((z_Speed >= -0.3) && (z_Speed <= 0.3)) {
      analogWrite (motorA1A, 0);
      analogWrite (motorA1B, 0);
      analogWrite (motorB1A, 0);
      analogWrite (motorB1B, 0);
      Serial.println (" stop  ");

  } else

  //FORWARD

  if ((z_Speed < -0.3)  && (y_Steer < 0.3 && y_Steer > -0.3)) {

      motorSpeed = (z_Speed * -1023);

      Serial.print (" Forward  "); Serial.print ("  motorSpeed= "); Serial.println (motorSpeed);

      analogWrite (motorA1A, 0);
      analogWrite (motorA1B, motorSpeed);
      analogWrite (motorB1A, 0);
      analogWrite (motorB1B, motorSpeed);

  } else

  //BACKWARD

  if ((z_Speed) > 0.3 && (y_Steer < 0.3 && y_Steer > -0.3)) {

      motorSpeed = ((z_Speed) * 1023);

      Serial.println (" BACKWARD   "); Serial.print ("  motorSpeed= "); Serial.println (motorSpeed);

      analogWrite (motorA1A, motorSpeed); //Turning Side slower than opposing side
      analogWrite (motorA1B, 0); //Turning Side s0er than opposing side
      analogWrite (motorB1A, motorSpeed);
      analogWrite (motorB1B, 0);

  } else

  //FORWARD DIAGONAL RIGHT

  if ((z_Speed) < -0.3 && (y_Steer) < -0.3) {


      motorSpeed = (z_Speed * -1023);
      motorSpeedADJ = (motorSpeed * (1 + y_Steer));

      Serial.println (" Forward  diagonal right  ");Serial.print ("  motorSpeed= "); Serial.print (motorSpeed);
      Serial.print ("  motorSpeedADJ= "); Serial.println (motorSpeedADJ);

      analogWrite (motorA1A, 0);
      analogWrite(motorA1B, motorSpeed);
      analogWrite (motorB1A, 0);
      analogWrite(motorB1B, motorSpeedADJ);

  } else

  //BACKWARD DIAGONAL RIGHT

  if ((z_Speed) > 0.3 && (y_Steer < 0.3)) {

      motorSpeed = ((z_Speed) * 1023);
      motorSpeedADJ = (motorSpeed * (1 + y_Steer));

      Serial.println (" BACKWARD DIAGONAL RIGHT  ");Serial.print ("  motorSpeed= "); Serial.print (motorSpeed);
      Serial.print ("  motorSpeedADJ= "); Serial.println (motorSpeedADJ);

      analogWrite (motorA1A, motorSpeedADJ); //Turning Side slower than opposing side
      analogWrite(motorA1B, 0); //Turning Side slower than opposing side
      analogWrite (motorB1A, motorSpeed);
      analogWrite(motorB1B, 0);

  } else

  //BACKWARD DIAGONAL LEFT

  if ((z_Speed) > 0.3 && (y_Steer) > 0.3) {

      motorSpeed = ((z_Speed) * 1023);
      motorSpeedADJ = (motorSpeed * (1 - y_Steer));

      Serial.println (" BACKWARD DIAGONAL LEFT  ");Serial.print ("  motorSpeed= "); Serial.print (motorSpeed);
      Serial.print ("  motorSpeedADJ= "); Serial.println (motorSpeedADJ);

      analogWrite (motorA1A, motorSpeed); //Turning Side slower than opposing side
      analogWrite(motorA1B, 0); //Turning Side slower than opposing side
      analogWrite (motorB1A, motorSpeedADJ);
      analogWrite(motorB1B, 0);

  } else

  //FORWARD DIAGONAL LEFT

  if ((z_Speed) < -0.3 && (y_Steer) > 0.3) {

      motorSpeed = (z_Speed * -1023);//z_Speed is negative here - needs to be +
      motorSpeedADJ = (motorSpeed * (1 - y_Steer)); //z_Speed is negative here, subtracting from 1

      Serial.println (" FORWARD DIAGONAL LEFT  ");Serial.print ("  motorSpeed= "); Serial.print (motorSpeed);
      Serial.print ("  motorSpeedADJ= "); Serial.println (motorSpeedADJ);

      analogWrite(motorA1A, 0);
      analogWrite (motorA1B, motorSpeedADJ);
      analogWrite(motorB1A, 0);
      analogWrite (motorB1B, motorSpeed);

     }
   // }
  }
}

//**************** Accelerometer - Accelerometer Control Mode****************

//*************Read RUN/STOP Switch - Accelerometer Control Mode***************
  BLYNK_WRITE (V4) {
    accel_Ready = param.asInt();

  }

//*************Read RUN/STOP Switch - Accelerometer Control Mode***************
